Euro Appliances PICCOLO 2.36m Alfresco Kitchen – PICCOLO

EURO PICCOLO 2.36m Alfresco Kitchen – PICCOLO

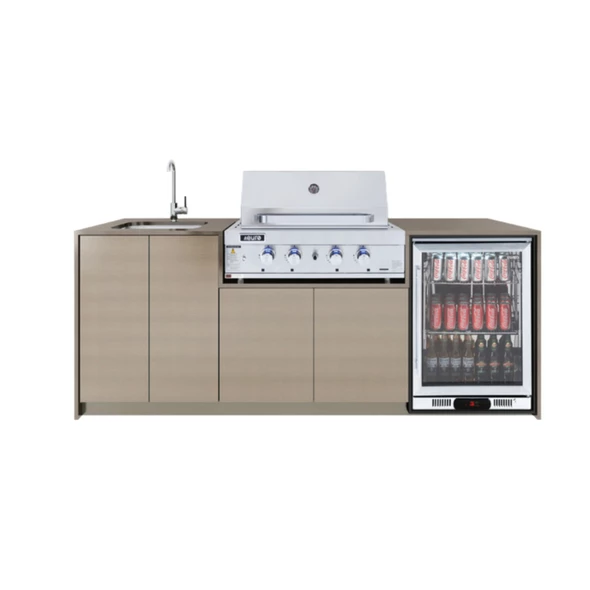

Euro Alfresco designs have various artistic specifications and features that are beneficial to our customers. Our designs are pre-designed for you, a complete joinery and appliance package is usually made to avoid extra micro-management of cabinet makers to suit your exact specifications. Our products are market differentiated, as we design products different from competitors but focus on remaining relevant to the latest industry standards and on trends outdoor kitchen designs. The Euro Appliances Piccolo alfresco kitchen is an impressive kitchen unit boasting a powerful four burner BBQ unit, one door beverage cooler, and under mount sink and tap for your convenience. If you’re planning on buying an outdoor kitchen combo, you can never go wrong with this set.

Step 1 – Plan, Measure & Select
How much outdoor space do you have?
Measure your outdoor area to see if the Piccolo kitchen is the right fit for your alfresco area. Use the visual guide below to check if your outdoor measurements will fit the kitchen unit perfectly,
Here is a checklist and questions you can use to verify your service requirements:
Will your kitchen and appliances be undercover or in a weatherproof environment?
Where are your current or future service points going to be?

• Electrical points
• Gas points
• Plumbing
• Water & Waste

Are there any surrounding permanent fixtures you need to consider?

• Balustrades
• Pillars

NB: Always place the beverage cooler undercover, preferably closest to your internal wall.

Step 2 – Choose Cabinetry Colour
Browse our extensive range of cabinetry colour options to find what you want. Compact laminate features and on trend colour selections available for kitchen doors and kickers.
What’s included:
Available with/without 3mm line grooves

Cabinetry Colours:
Super white
Seasoned Oak
Moose
Elegant Oak
Natural Walnut
Fox-Teakwood
Oyster Linea
Black
Burnished-Wood
New Graphite



Step 3 – Choose Stone Colour
Choose the right stone colour from our quality selection to complement your cabinetry.

Stone Colours:
Sparkling White
Sparkling Grey
Sparkling Black



Package Includes:
1 x 4 Burner Hooded BBQ
1 x 138L Single Door Beverage Cooler
1 x Undermount Sink Single Bowl
1 x Alfresco Sink Mixer
Cabinetry
20mm Stone Benchtop

1 x EURO PICCOLO 2.36m Alfresco Kitchen – PICCOLO

Features:
Number Of Burners:	4
Total Gas Consumption:	52 MJ/hr LPG / 44.0 MJ//hr natural
Main Burners Gas Consumption:	13 MJ/hr LPG / 11 MJ/hr natural
Total Main Burners Power:	12000 BTU LPG / NG
Fuel Type:	Gas
Gas Connection:	LPG jets fitted (Natural gas conversion optional)
Burner Operation:	One touch push button battery ignition.
Lid Type:	Hood
Double Skin Hood Finish:	304 Grade stainless steel
Tube Burners Finish:	304 Grade stainless steel
Flame Tamers Finish:	304 Grade stainless steel
Fire Box Finish:	304 Grade stainless steel
Cooking Chassis Finish:	304 Grade stainless steel
Valves Finish:	Brass
Plate & Grill Finish:	Cast iron
Cooking Grill:	1 Reversible cast iron cooking grill
Cooking Grill Plate:	1 Reversible cast iron griddle plate
Lighting Features:	2 Halogen lights
Additional Features:	Cooking chassis, fire box, stainless steel warming rack, easily removable drip tray.
Accessories Included:	BBQ cover
Product Dimensions:	W: 660 mm x D: 455 mm
Product Weight:	52.0 kg gross / 40.0 kg net
Bbq Certification:	Tested and complies with Australian Standards AS 4557:2004



Features for this model – EA60WFSX2L
Energy Consumption:	0.83 kWh/24h
Noise Level:	45 Decibels
Weight:	44.0 kg (net)
Power Input:	182W
Electrical Requirements:	Unit is supplied with 10-amp plug & cord
Temperature Control:	0 – 10 degrees electronic temperature control
Temperature Cover:	Protective cover for temperature control
Lighting Feature:	Separate internal light
Door Features:	Solid stainless steel door, left-hand hinge opening
Refrigerant:	R600a refrigerant ozone friendly
Exterior Finish:	304 Grade stainless steel
Interior Finish:	Mirror polished stainless steel
Shelves:	Double chrome adjustable shelves
Energy Efficiency Features:	Double glazed doors with Low-E glass panel, recirculating internal fan
Compressor:	Quiet compressor with front airflow system
Lockability:	Key lockable doors
Additional Features:	Spring back door
Refrigerator Use:	Suitable for beverages only
Product Dimensions:	H: 840mm x W: 600 mm x D: 500 mm (Door handle extra 45mm depth)
Product Warranty:	2 years, conditions apply



Features for this model – EAS510UM
Installation Type:	Overmount/Undermount
Sink Finish/Material:	304 Grade stainless steel
Waste Fitting:	Supplied with designer waste and plug
Recommended Tapware:	PRODUCT CODE: V054C
Product Dimensions:	510mm x 440mm
Bowl Dimensions:	510mm x 440mm x 228mm
Cabinet Cut-Out:	475mm x 405mm x 4R-115mm
Min Cabinet Size:	475mm x 405mm x 4R-115mm
Bowl Capacity:	40L
Overflow:	N/A
Tap Holes:	N/A
Fixings:	N/A
Product Warranty:	2 years, conditions apply



Features for this model – V054C
Surface Finish:	Quality chrome finish
Pressure Rating:	Maximum continuous operating pressure 500kPA
Water Consumption:	6.0 L/min
Rating:	5 Star WELS Water Rating
Colour:	Chrome
Sink Hole Requirement:	35mm
Recommended Use:	Domestic
Product Dimensions:	200mm x 345mm x 88mm
Product Warranty:	5 Years Ceramic Cartridge, 3 Years Product + Parts, 1 Years Parts + Labour, Watermark Certified, *Conditions Apply



Features for this model – AC7002D
Colour Options:	Black Polar White Moose Stipple Seal Platinum Micro Jericho Oyster Linea Seasoned Oak Blackened Linewood New Graphite
Cabinets (Available With/Without 3mm Line Grooves):	Model: AC7002D 700mm + 2 Door Module + Door + Kicker Model: AC9502DBQ 950mm + 2 Door BBQ Module + Door + Kicker AC660DWF 660mm + Fridge Frame Unit



Features for this model – V054C
Stone Colour Options:	Sparkling Black, Sparkling White, Sparkling Grey, Sparkling Cinnamon
Includes:	745 20mm + Stone Tap with Sink and Tap Cutout 255 x 2 20mm + BBQ Sides 950 20mm + BBQ Base 705 20mm + Stone Tap 930 x 2 20mm + Stone Waterfall Ends
